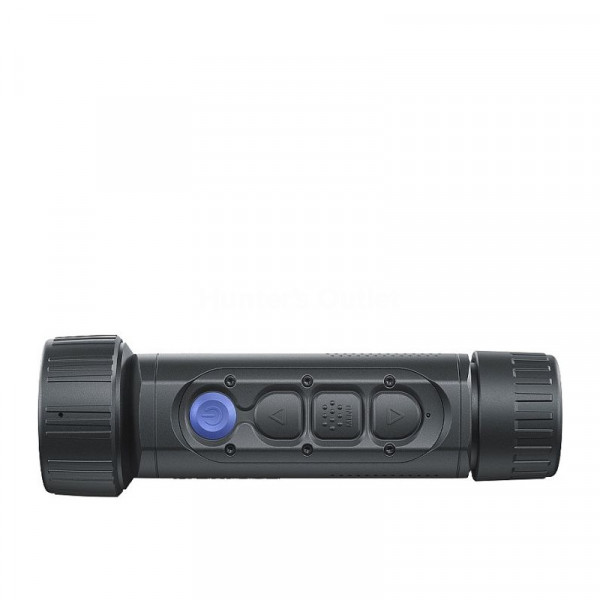

Pulsar Axion XQ38

Quick Overview

Highly sensitive thermal imaging sensor
The Axion XQ’s 384x288 @ 17 µm thermal imaging sensor with NETD 40mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager.
Ships in 4-7 days.

Availability: In stock

Only 2 left

Regular Price: €2,000.00

Special Price €1,830.00





Details

The NEW LEVEL OF THERMAL SPOTTING

Full featured, extra sensitive, ultra compact monocular



Highly sensitive thermal imaging sensor

The Axion XQ’s 384x288 @ 17 µm thermal imaging sensor with NETD 40mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager.



Light-weight and Rugged Magnesium Alloy Housing

Housing made from light-weight magnesium alloy ensures high structural rigidity and ruggedness. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.



Video and Still-Photo Recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 Gb of internal memory provide many hours of recorded video and tons of photos.



Image Boost Technology

Pulsar’s proprietary Image Boost Technology is comprised of software algorithms designed to increase imaging clarity and overall image detail. Image Boost results in a sharper, more detailed field of view and enhanced object identification capabilities.



IPX7 Waterproof Rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.





Main
Sensor: 384x288 pix. @ 17 µm (NETD
Objective lens: F38/1.2
Magnification, x: 3.5 - 14 (x4 zoom)
Field of view (HxV), degrees / m@100m: 9.8x7.4 / 17.2x12.9
Detection range, m: 1350

Sensor
Type: uncooled
Resolution, pixels: 384x288
Pixel pitch, µm: 17
NETD, mK: -
Frame rate, Hz: 50

Optics
Objective lens: F38/1.2
Magnification, x: 3.5 - 14
Field of view (HxV), degrees / m @ 100 m: 9.8x7.4 / 17.2x12.9
Eye relief, mm: -

Display
Type: AMOLED
Resolution, pixels: 1024x768

Range Performance
Detection range, m: 1350

Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014: -
Wavelength, nm: -
Max. measuring range, m: -
Measurement accuracy, m: -

Video Recorder
Video / photo resolution, pixel: 1024x768
Video / photo format: .mp4 / .jpg
Built-in memory, GB: 16
Built-in memory capacity: -

Wi-Fi
Wireless Standard: 802,11 b/g
Frequency, GHz: 2.4GHz
Line-of-sight reception range, m: 15

Environmental Characteristics
Degree of protection, IP code (IEC60529): IPХ7
Operating temperature range, °С: -25 – +40

Connections and Compatibilities
Mount, type: -
Remote control: -

Power Supply
Output voltage, V: 3.0 - 4.2
Battery type: Li-Ion Battery Pack APS5
Capacity, mAh: 4900
Operating time on battery pack (at t=22°C), h *: -
External power supply, V: 5V

Weight & Size
Body material: -
Dimensions, mm: 167x49x73
Weight, kg: 0.35
